Security Groups

A Security Group is a stateful software firewall that controls inbound (Ingress) and outbound (Egress) traffic for VMs. All VMs that are members of a Security Group apply its rules.

Tip

Create Security Groups with the necessary rules before deploying a VM, so you can simply select them in the Launch Instance Wizard.

Create a Security Group

Horizon

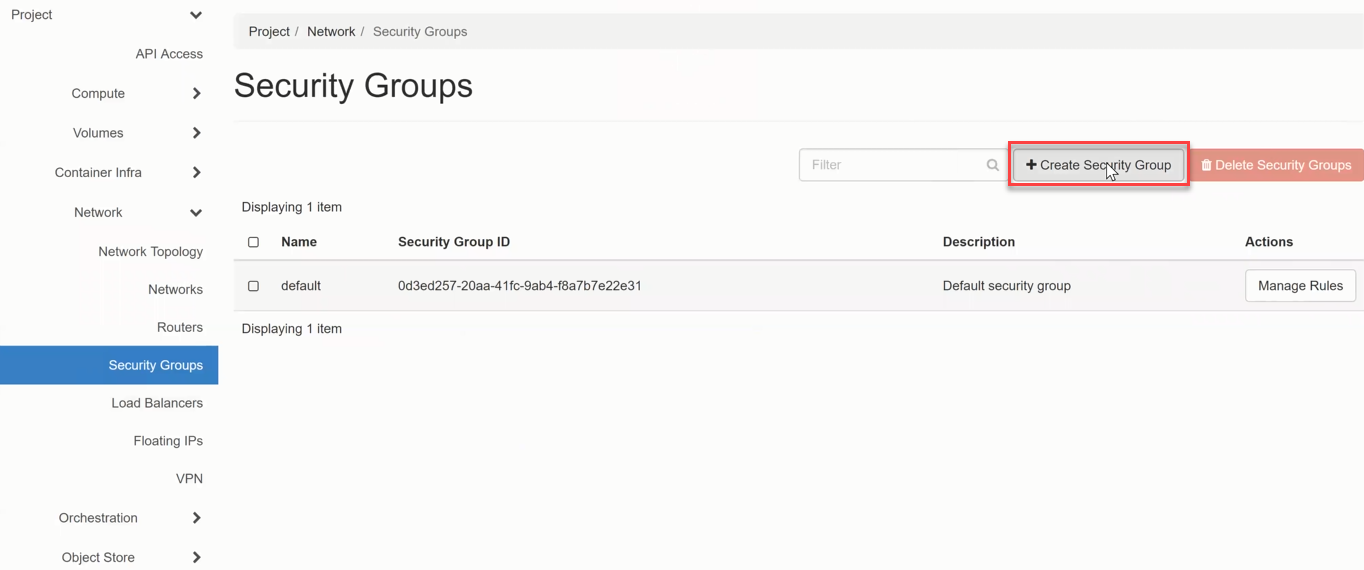

1. Navigate to Network > Security Groups and click +Create Security Group.

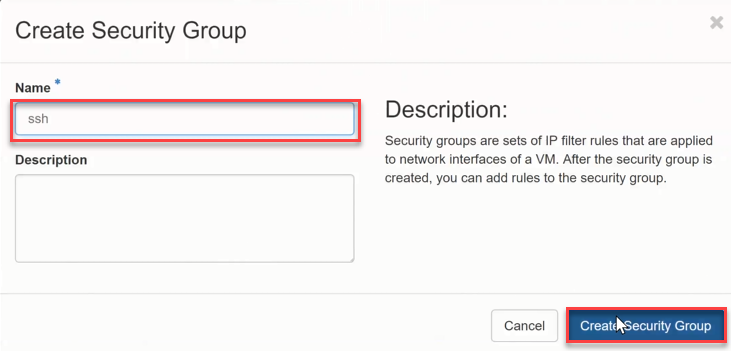

2. Enter a Name and optionally a description.
3. Click +Create Security Group.

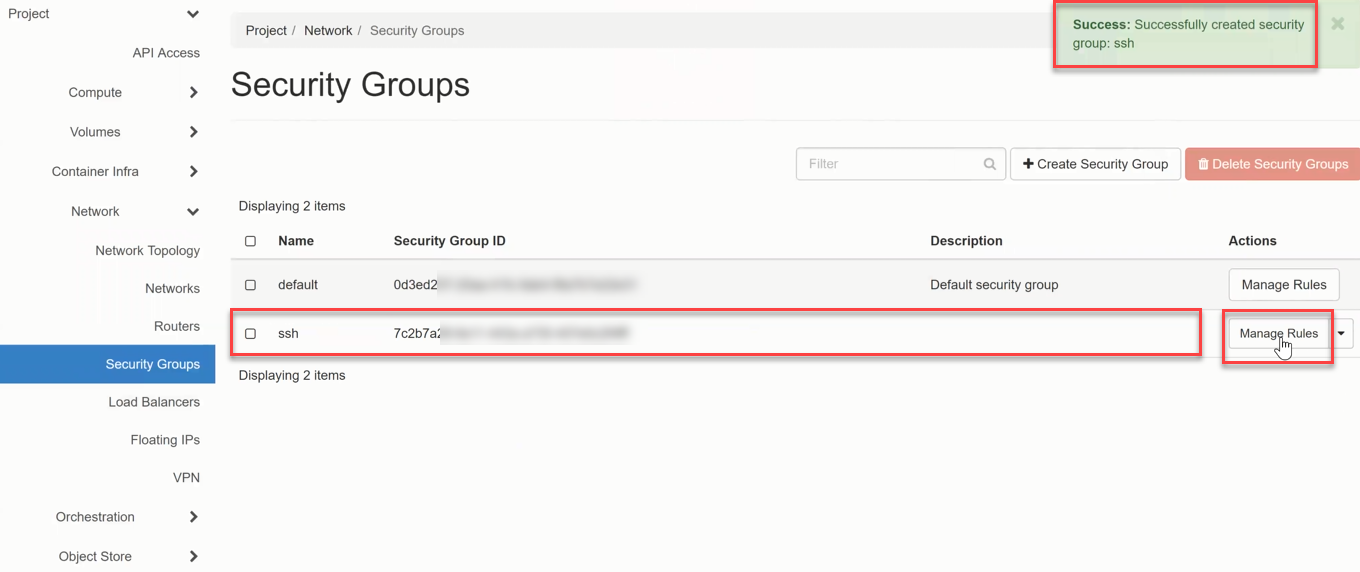

The Security Group is created and appears in the list. Click Manage Rules to configure rules.

CLI

openstack security group create my-secgroup \
    --description "SSH and web access"

Add Rules

By default, an Egress rule (any/any) is created automatically to allow outgoing connections. Add Ingress rules to allow incoming traffic.

Horizon

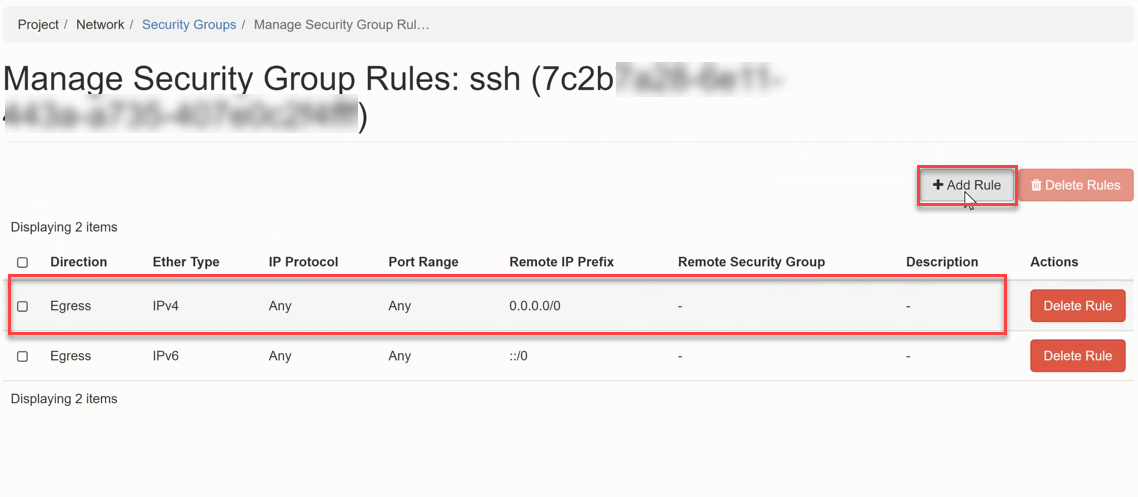

1. Click +Add Rule.

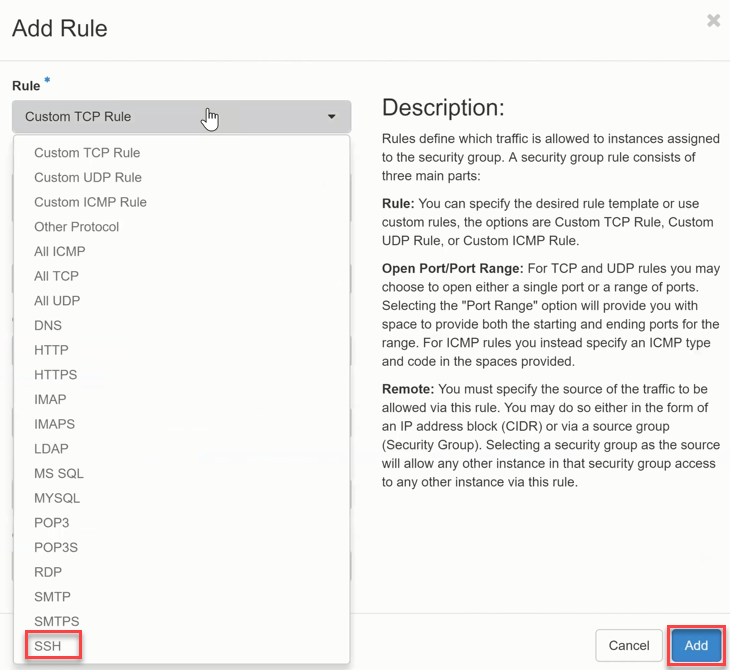

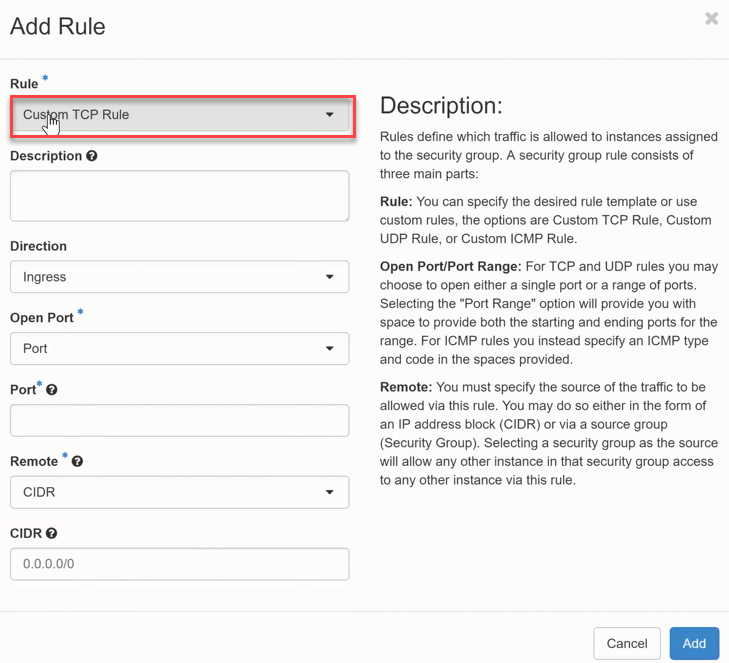

2. Select a template (e.g. SSH) or choose Custom TCP Rule.

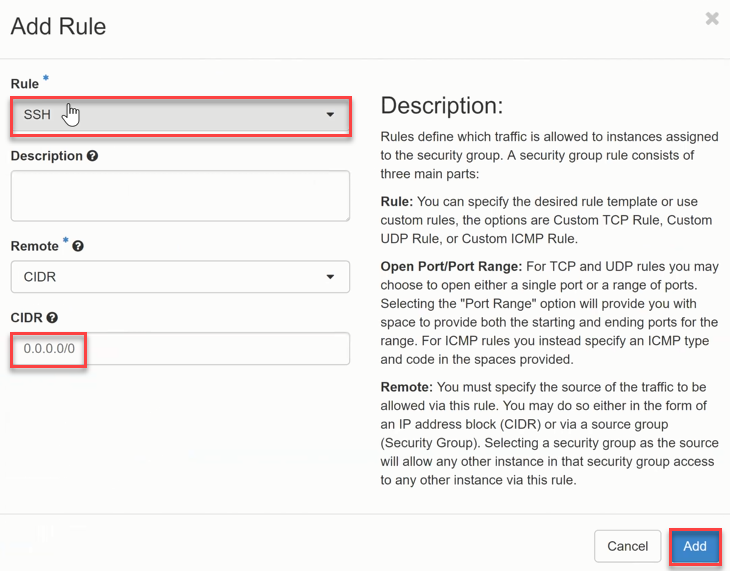

3. Configure the Remote (CIDR or another Security Group).
4. Click Add.

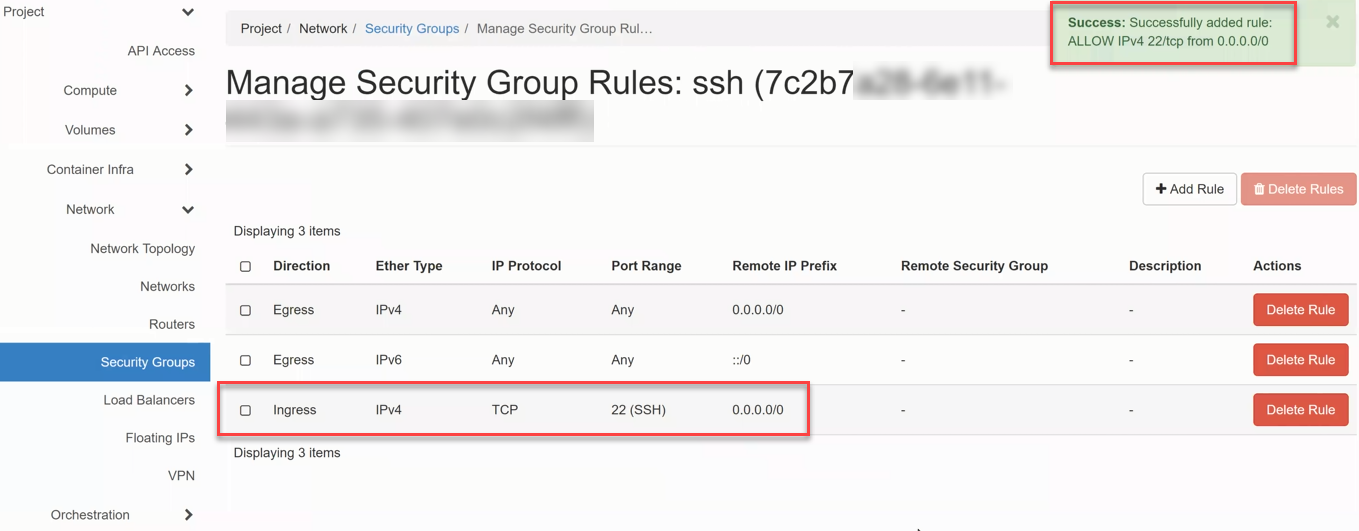

The SSH Ingress rule (TCP / Port 22) is now active.

CLI

# Allow SSH from anywhere
openstack security group rule create my-secgroup \
    --protocol tcp --dst-port 22 --remote-ip 0.0.0.0/0

# Allow HTTP from anywhere
openstack security group rule create my-secgroup \
    --protocol tcp --dst-port 80 --remote-ip 0.0.0.0/0

# Allow ICMP (ping)
openstack security group rule create my-secgroup \
    --protocol icmp --remote-ip 0.0.0.0/0

Assign a Security Group to a VM

Horizon

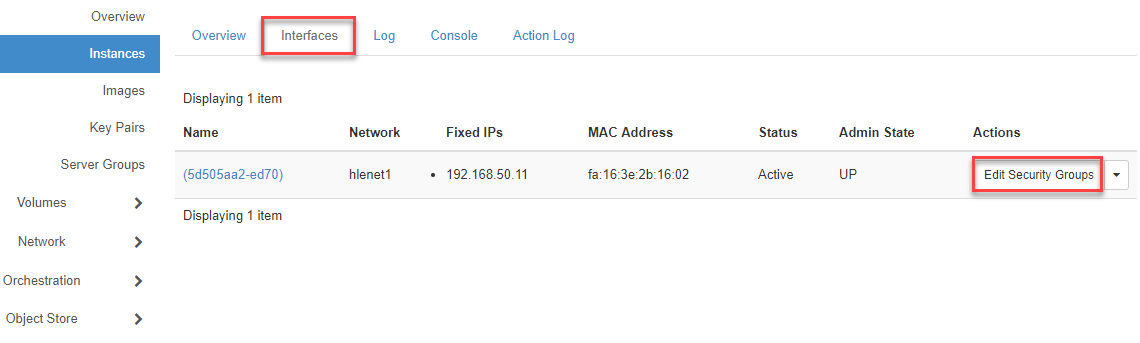

1. Navigate to Compute > Instances.
2. In the Interfaces tab, click Edit Security Groups.

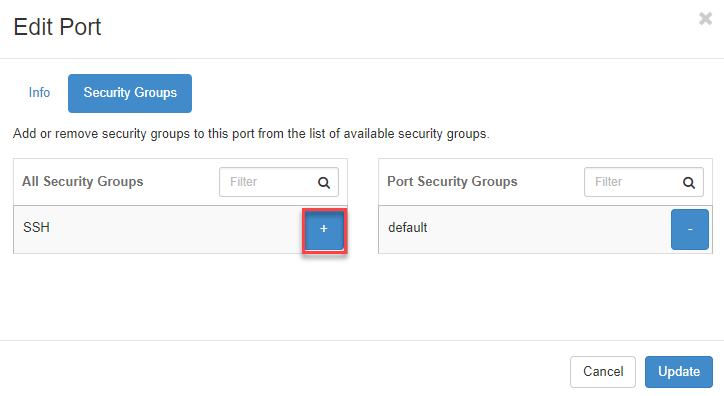

3. Click the + to add the Security Group to the VM's port.
4. Click Update.

CLI

openstack server add security group my-vm my-secgroup

Note

Security Groups can also be assigned during VM launch. See Launch Instance.
